One of our more unusual projects

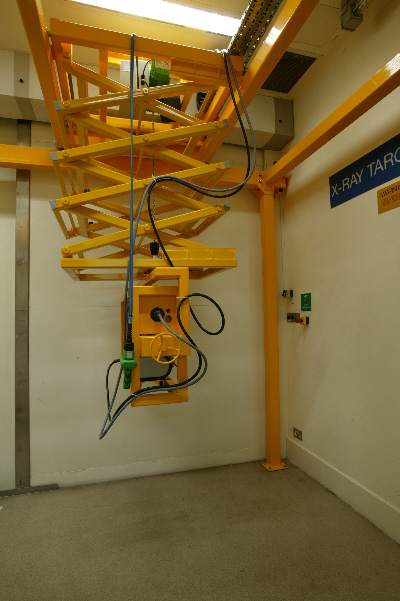

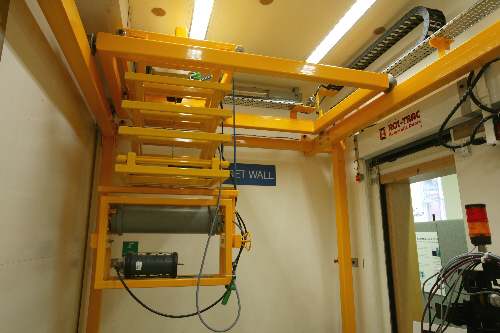

The Victoria & Albert Museum commissioned Hurst Peirce + Malcolm to design a specialist manipulator gantry to improve their ability to X-ray their artefacts. The apparatus was to carry two X-ray heads and the criteria was that it should be possible to manouevre the heads into any position and angle. The gantry had to be able to fit into their purpose built lead lined X-ray room and this prevented the use of a bespoke manipulator. The photographs show our solution to the challenge and offers three dimensional positioning and rotation about two axes.

The manipulator was built by Atifex Solutions Ltd

Photographs provided by Paul Robins of the V&A
